12 Bedroom Apartment Design - ID 29902
12 Bedroom Apartment Design - ID 29902
FileType:
  • CADPDF
  • PDF
Addon:
  • ArchitecturalDrawings

$ 56.86

$ 43.74

Please select combo product attributes
The combo subtotal is $,SAVE$

Product Details

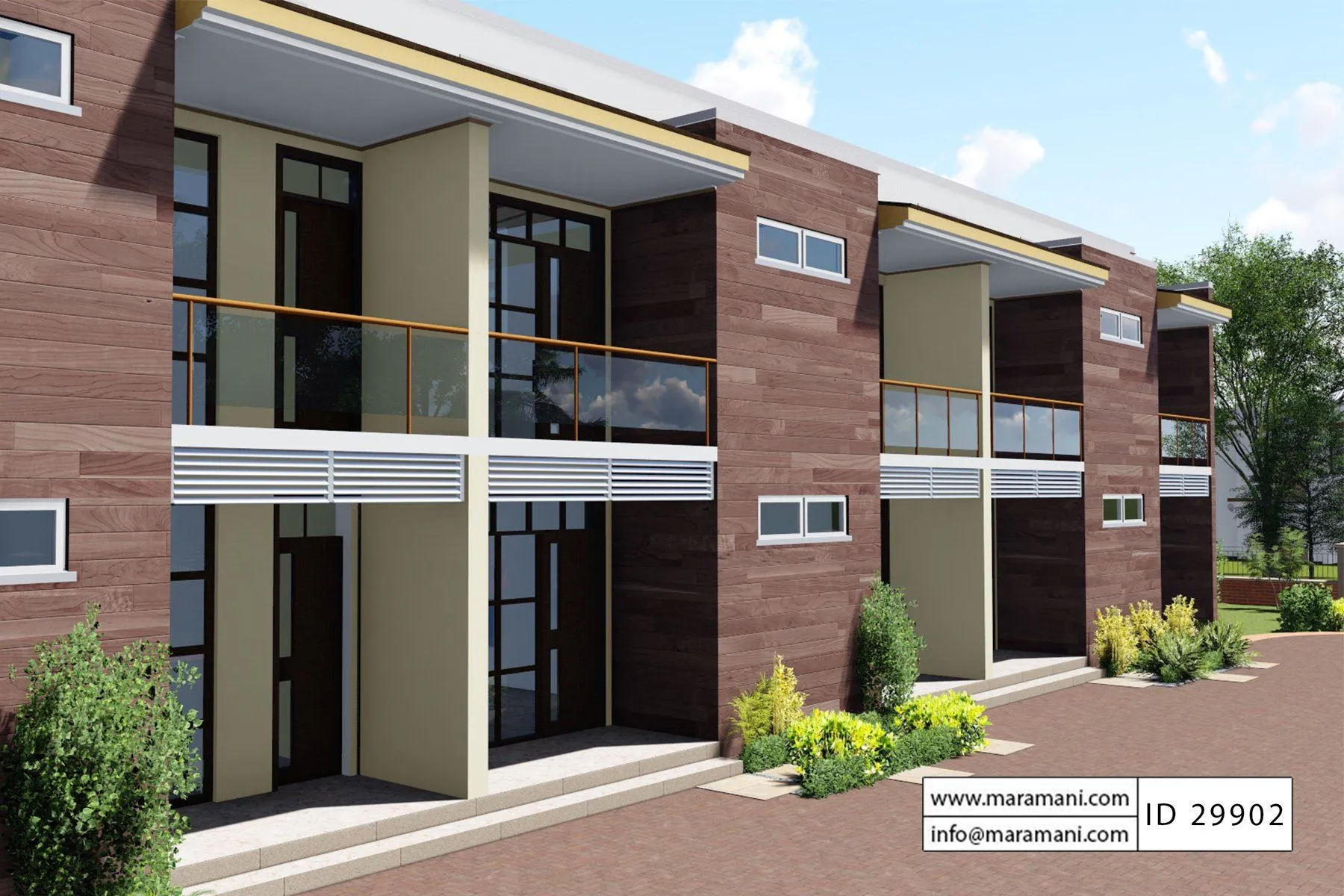

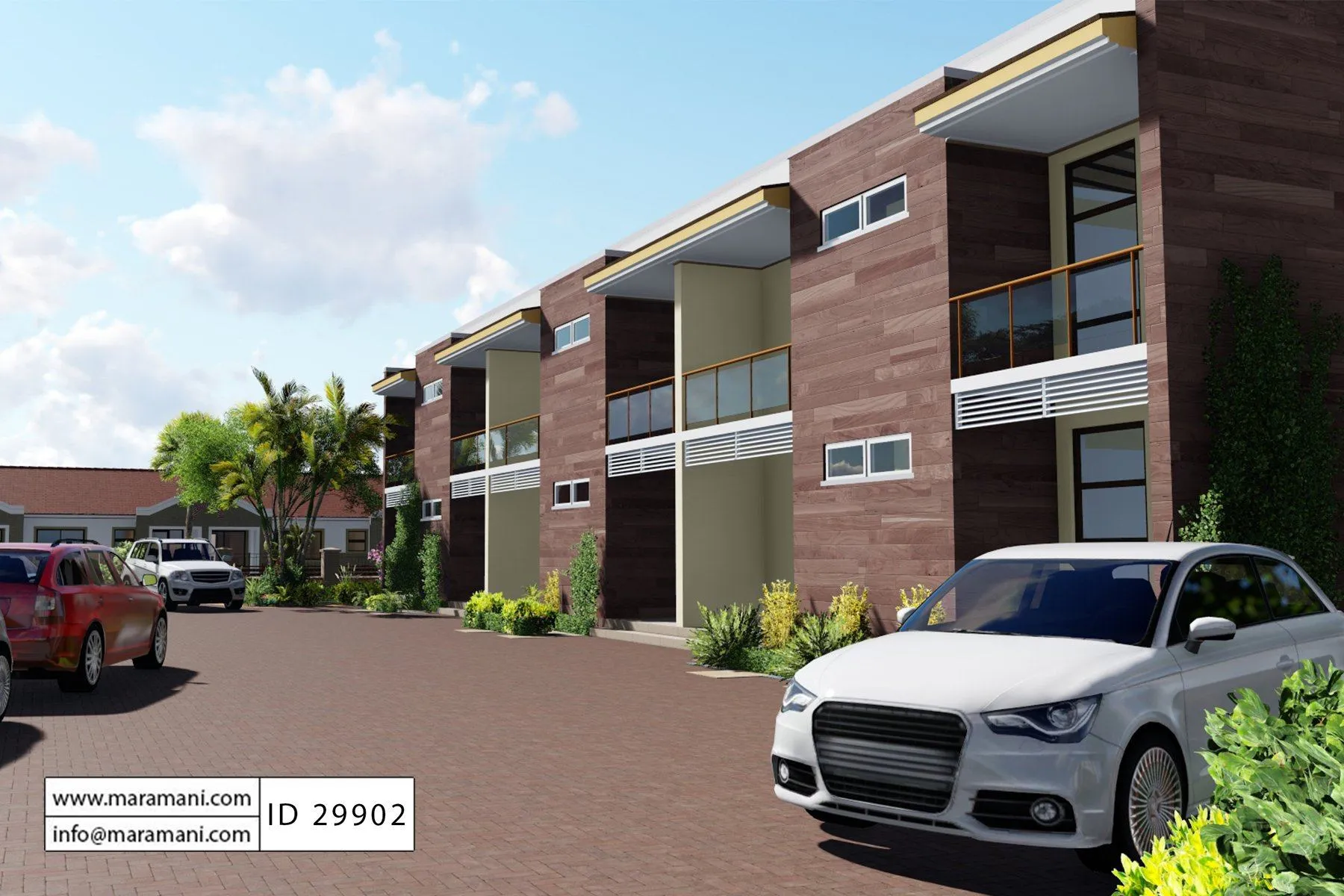

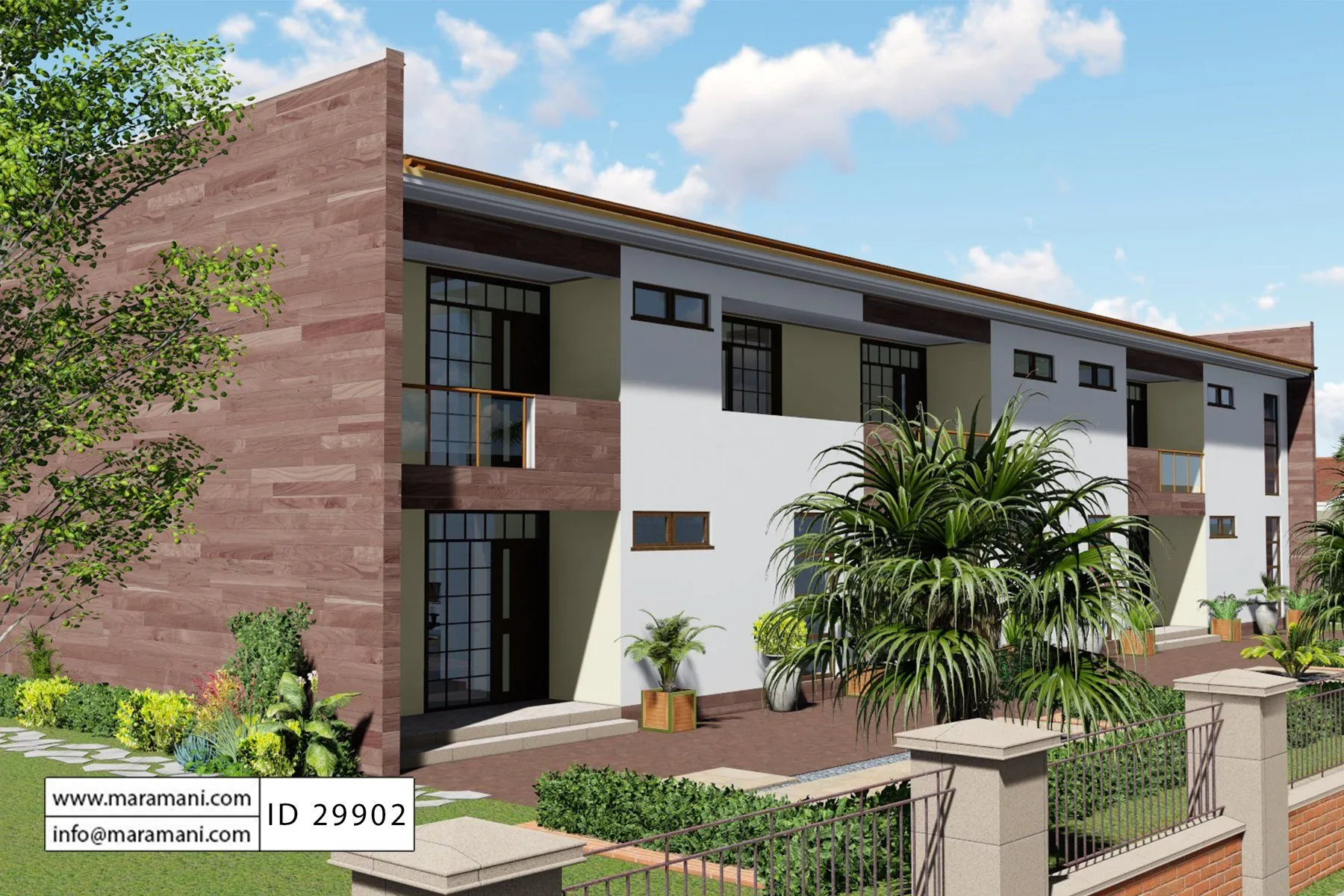

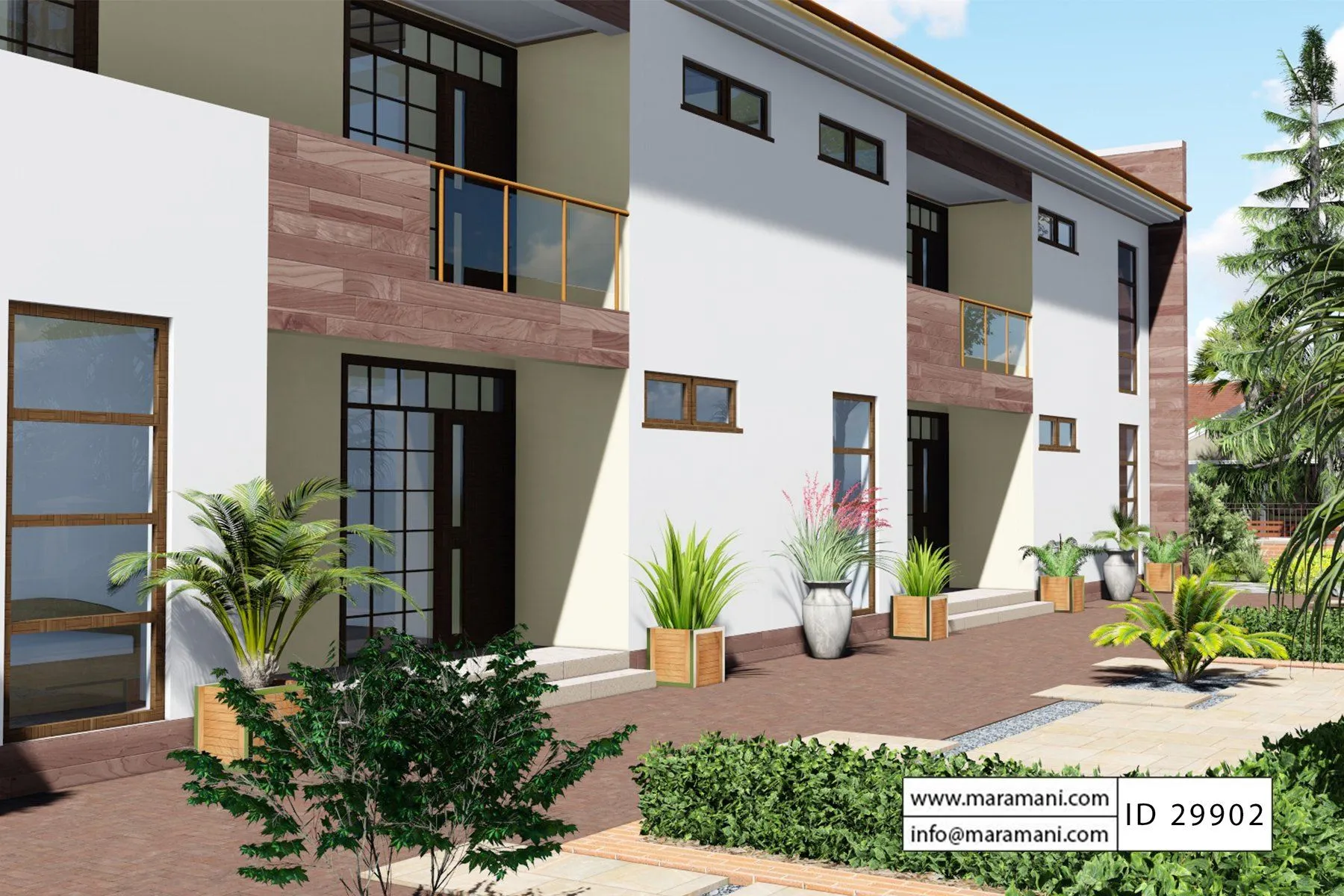

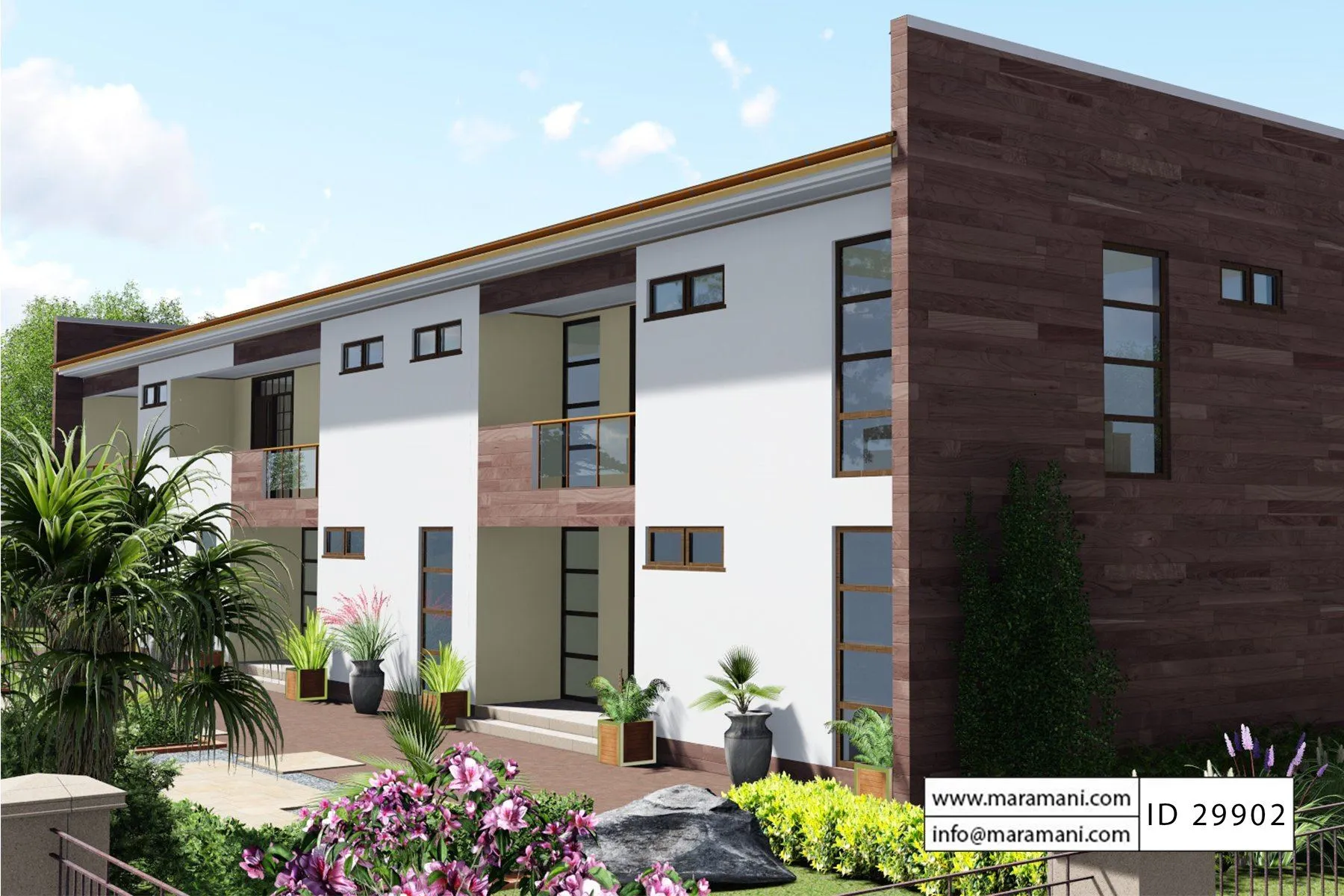

A contemporary and compact 5 flat apartment block with 2 bedroom flats on the ground floor and 3 bedroom flats on the first floor. Each 2 bedroom flat contains 1 self-contained bedroom while the 3 bedroom flats contain 2 self-contained bedrooms (en suite). Each apartment has it's own entrance door directly from the entrance yard giving each family maximum privacy. This plan is perfect for rent for middle-income families and high-income earners.

Plan Details

Features Drawings List
Stories: 2
Flats: 5 (3x2 BR 2x3 BR)
Bedroom: 12
Self-contained rooms: 7
Toilets: 12
Kitchen:5
Living room: 5
Balcony: 9
Verandah: 9
Laundry: 5
Store: 4

Foundation plan

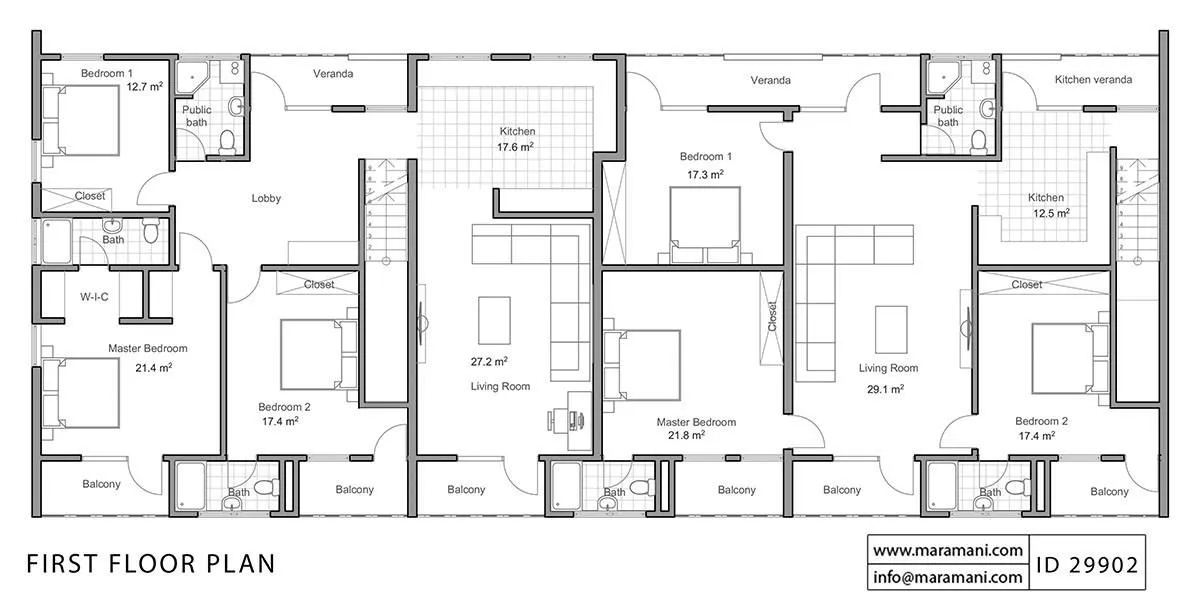

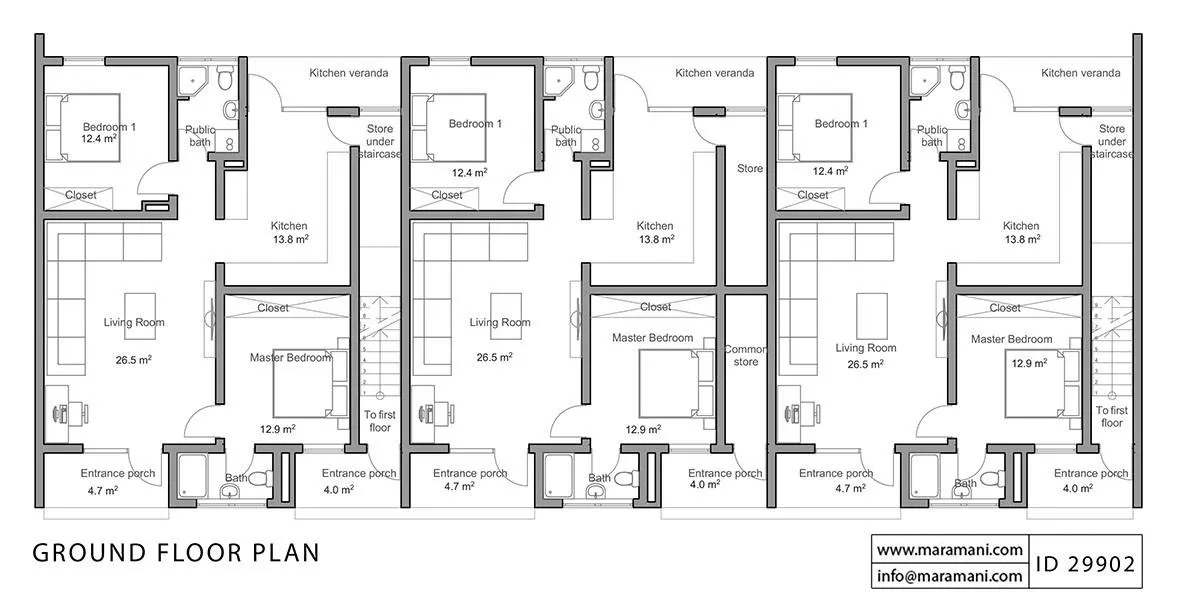

Floor plan
Roof plan
Sections
Elevations
Door and Window Schedule
Construction details
Schematic Electrical layout
Waste and foul water drainage

*Drawings delivered in PDF and DWG Format
